Okuma MA 600II (2019) – 630×630 Horizontal CNC Machining Center, OSP-P300MA

The MA 600II is a high-throughput horizontal machining center featuring 630×630 mm pallets, OSP-P300MA control, and an HSK100 spindle up to 12,000 rpm. A rigid structure and Thermo-Friendly Concept deliver dimensional stability in long cycles. With a 171-tool magazine and 7-s pallet change, it boosts autonomy and reduces downtime.

Benefits for your production:

• Higher uptime: fast pallet changer and up to 171 tools for long unmanned runs.

• Consistent accuracy: positioning ±0.004 mm and repeatability ±0.0015/100 mm.

• Process flexibility: table indexing 0.001° (360,000 positions) and 20-bar TSC.

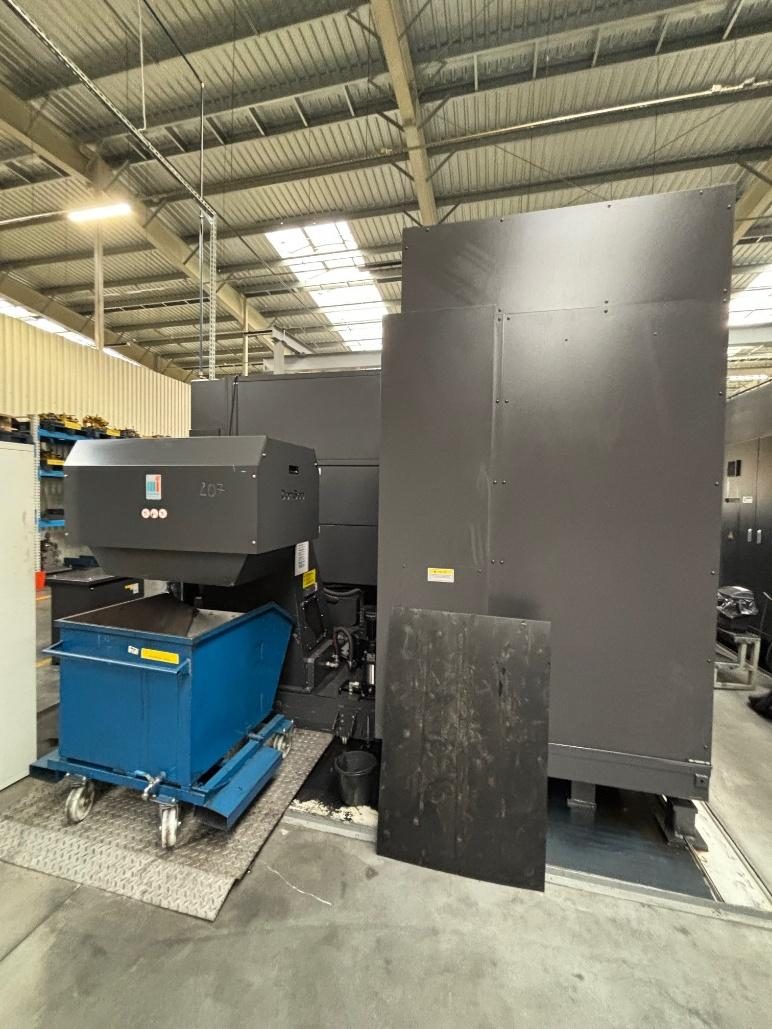

• Reduced stoppages: Mayfran ConSep 2000 chip conveyor and on-table presetting.

Configuration & technical features (from PDF):

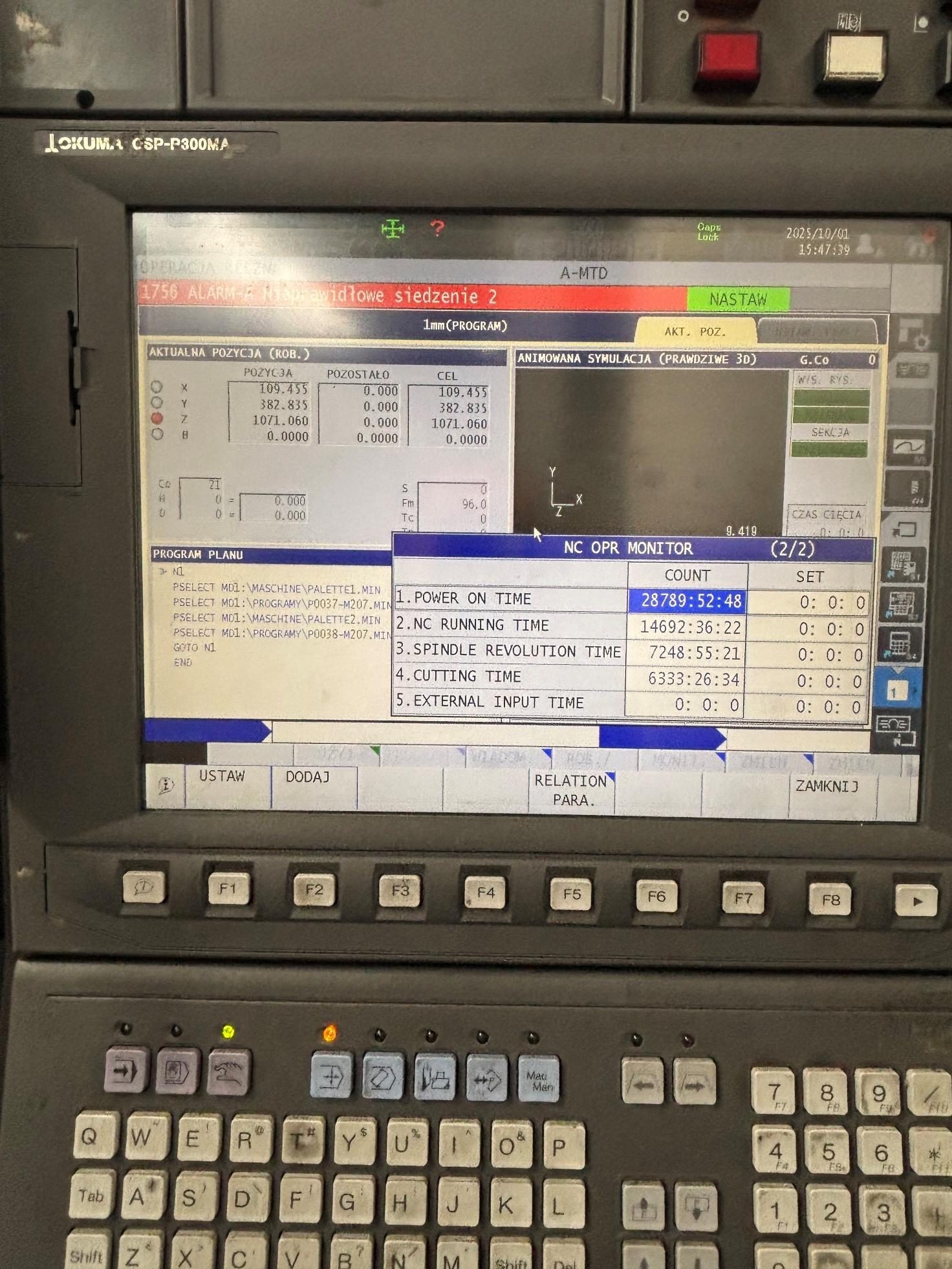

• CNC: OSP-P300MA

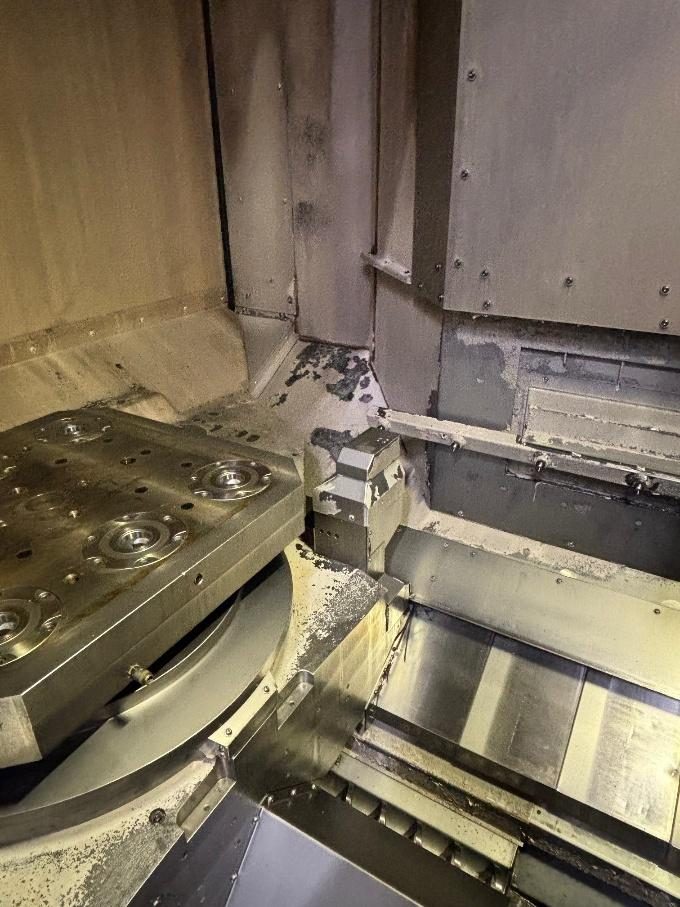

• Table/Pallet: 630×630 mm; max load 1,200 kg; max workpiece Ø1000×1000 mm; indexing 0.001°; table drive 3.8 kW; index 90°/180° 2.0/3.0 s; pallet change 7 s

• Axes: travels X 1000 / Y 900 / Z 1000 mm; spindle center→pallet surface 50–950 mm; spindle nose→pallet center 70–1070 mm; rapid 60 m/min; feed up to 60,000 mm/min; positioning ±0.004 mm; repeatability ±0.0015/100 mm

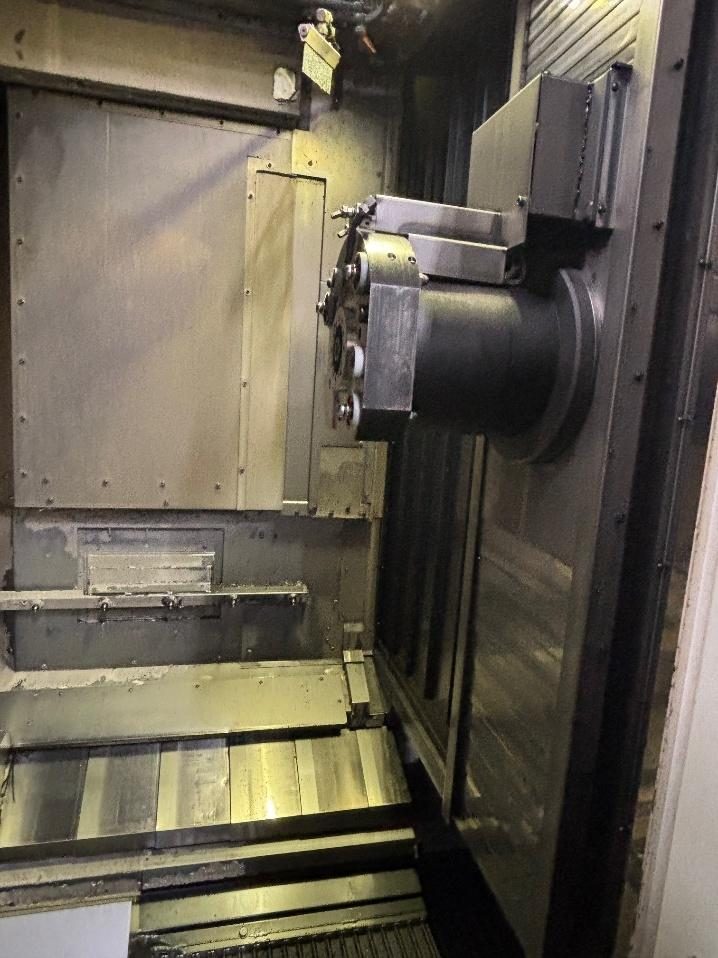

• Spindle: HSK100, 12,000 rpm; power 37/26 kW (max/cont.)

• Tool magazine: 171 stations (fixed pot); tool-to-tool 1.9 s; chip-to-chip 4.4 s; air 4–6 bar

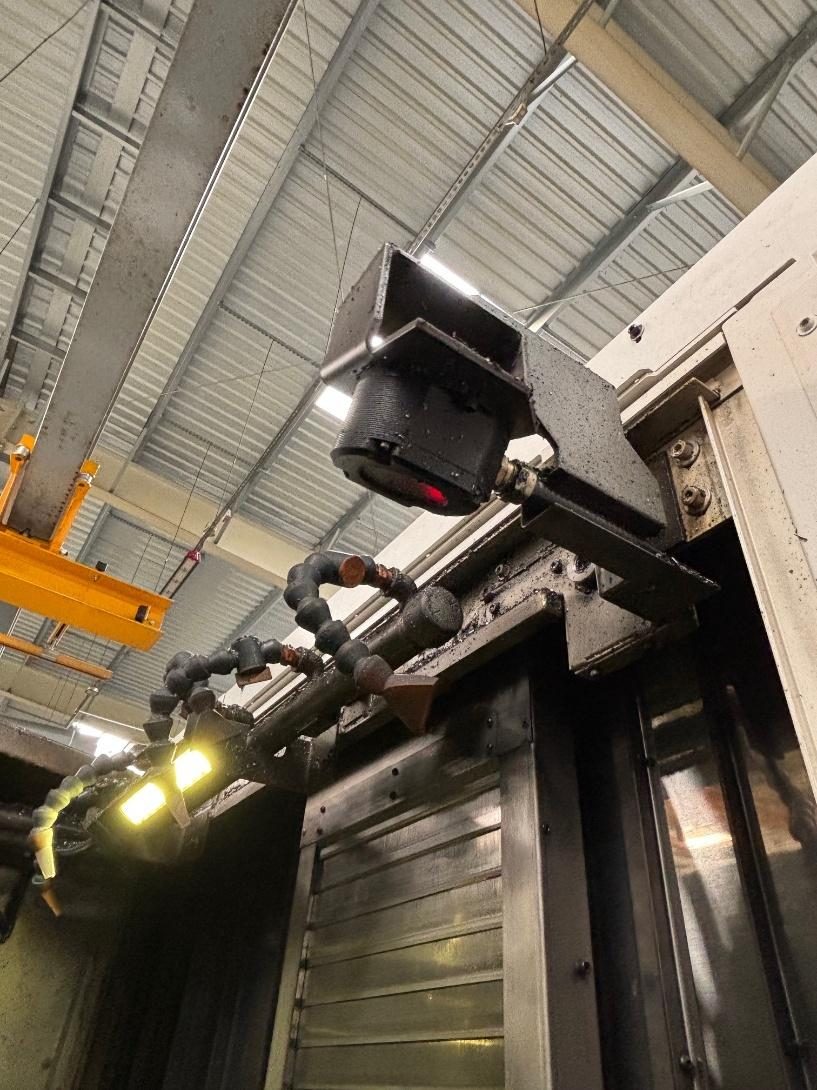

• Equipment: 20-bar TSC; Mayfran ConSep 2000; on-table presetting; Renishaw probe preparation; turning function

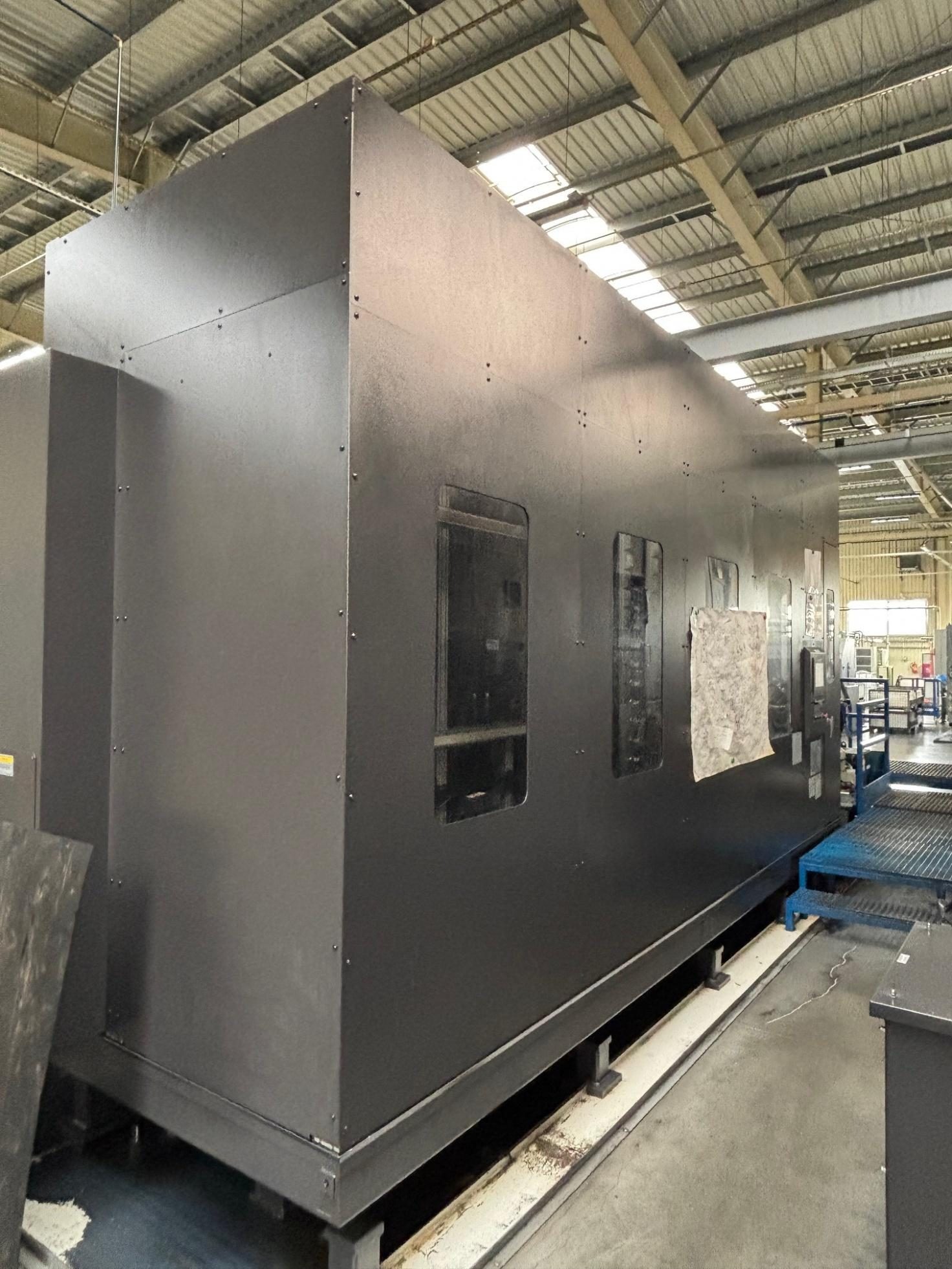

• Size/Weight/Power: H 3.28 m; footprint 3.38×6.11 m (2-pallet); 24,000 kg; 50 kVA
